Capabilities

Our continuous investment strategies provide you with the support and service you deserve.

We leverage our progressive skillset, experience, and cutting edge technology to provide a dynamic range of key industry support. With a variety of offerings in diverse industries, Jerl Machine is your one-stop shop for trusted service.

Check out our capabilities list below

Please click here for a printable capabilities page

Make sure to check back often and follow our socials to stay up to date with company news, equipment updates, and employee appreciation.

5-AXIS MACHINING CENTERS
Wire EDM
CNC HORIZONTAL MACHINING CENTERS – HMC
CNC VERTICAL MACHINING CENTERS – VMC
CNC VERTICAL TURNING CENTERS - VTL
CNC HORIZONTAL TURNING CENTERS
CNC BRIDGE / GANTRY MILLS
CNC BORING MILLS
MANUAL BORING MILLS
QUALITY CONTROL EQUIPMENT
MANUAL MILLS & LATHES
ASSEMBLY, FABRICATION, PAINT & MORE
GRINDERS
CERTIFICATIONS & SOFTWARE

(2) Travel up to: X=118.00’’, Y=33.50’’, Z=31.50’’

(Full 5-Axis Approx. 32’’ Cube)

12,000 RPM Max

Up to 7,800 lb. workload

Cat 40 Big+

1000 PSI Thru-Spindle Coolant

Key features of the Makino U6 EDM machine:
General Specs -- Metric -- English
X, Y Axis Travel -- 650mm x 450mm -- 25.59" x 17.71"
Z Axis Travel -- 420 mm -- 16.53"

Work Table Size -- 910mm x 710mm -- 35.8" x 28.0"
Maximum Load -- 1,500 kg -- 3,306 lbs.

Repeatability:
-X/Y-Axes (Full Stroke) ± 0.0015 mm -- ± 0.0001"
-Roundness TIR -- 0.005 mm -- 0.0003”

(10) Travel up to: X=63.00’’, Y=56.00’’, Z=46.00’’

(Approx. 60’’ cube)

12,000 RPM Max

Up to 6,600 Lbs.

CAT 40 & 50

1000 PSI Thru-Spindle Coolant

Haimer Shrink Fit Balanced Tooling and Standard Modular Fixture Tables

on all HMC’s w/interchangeable tombstones, fixtures, & vises.

(7) Vertical Machining Centers with travel up to:

X= 43.00’’, Y=26.00’’, Z=24.00’’

16,000 RPM Max

Up to 2,700 lb. workload

CAT 40, 50, & BT-30

1000 PSI Thru-Spindle Coolant

(6) Vertical turning centers

Turning up to: 91.00’’ Diameter (93.00’’ Diameter Swing) x 36.00" Height

Turning (with Live Tooling) up to 78.00" Diameter x 59.00" Height

Up to 17,600 lb. workload

(10) CNC Horizontal Turning Centers

Turning up to: 35’’ Diameter x 126’’ Between Centers

Live Tooling

Travels up to: X=206.00’’ Y=118.00’’ Z=43.3’’ (+300mm Riser)

360 degree right angle head (1 degree increments)

8,000 RPM

Cat 50

1000 PSI Thru-Spindle Coolant

Up to 48,400 lb. workload

(4) CNC Boring Mills with travel up to: X=158.00’’ Y=120.00’’ Z=60.00’’ W=32.00’’

Full Contouring 4^th Axis

6’’ Spindle, 3000 RPM Max

Up to 44,000 lb. workload

CAT 50

(3) Manual boring mills with travel up to: X=84.00’’, Y=72.00’’, Z=59.00’’

Up to 13,200 lb. workload

360° Rotary Tables

Cat 50

(2) CNC Coordinate Measuring Machine's with travel up to: X=40.00, Y=40.00, Z=32.00’’ PH200 Tip

Up to 2903 lb. workload

(2) Tessa Micro Height Gauges up to 36"

(1) Manual CMM with travel up to: 24.00" x 24.00" x 20.00"

Up to 40" Micrometer capacity

Shadowgraph and Comparator capabilities

(5) MANUAL LATHES

Turning up to: 33.00’’ Diameter (25.00’’ Over Carriage) x 157.00’’ Between Centers W/ DRO

(8) MANUAL MILLS

ProtoTRAK equipped bridgeports

20,000+ Sq. Ft. of Assembly Area

200 Ton hydraulic press

(3) Mandrel/Tube Benders - Up to 2.50” Diameter Solid Stock

(40+) Overhead/Jib Cranes – Up to 25 Tons

(8+) Welders/Plasma – Mig, Tig, Heli-Arc

(6+) Saws – Vertical/Horizontal Band, Cold-saw

(1) Crossflow Paint Booth - 14’W x 25’L x 9’H (Industrial Paints, Primers, Epoxies)

(2) Key-seaters

(1) Hone

(2) Drill Presses

(8) GRINDERS

Rotary Surface/Blanchard up to 42.00’’ Diameter

Surface Grinding up to 24.00’’W x 96.00’’L

OD Grinding up to 14.00’’ Dia x 72.00’’L

1,600 LB. workload

ID Grinding up to 14.00’’ Dia x 12.00’’L

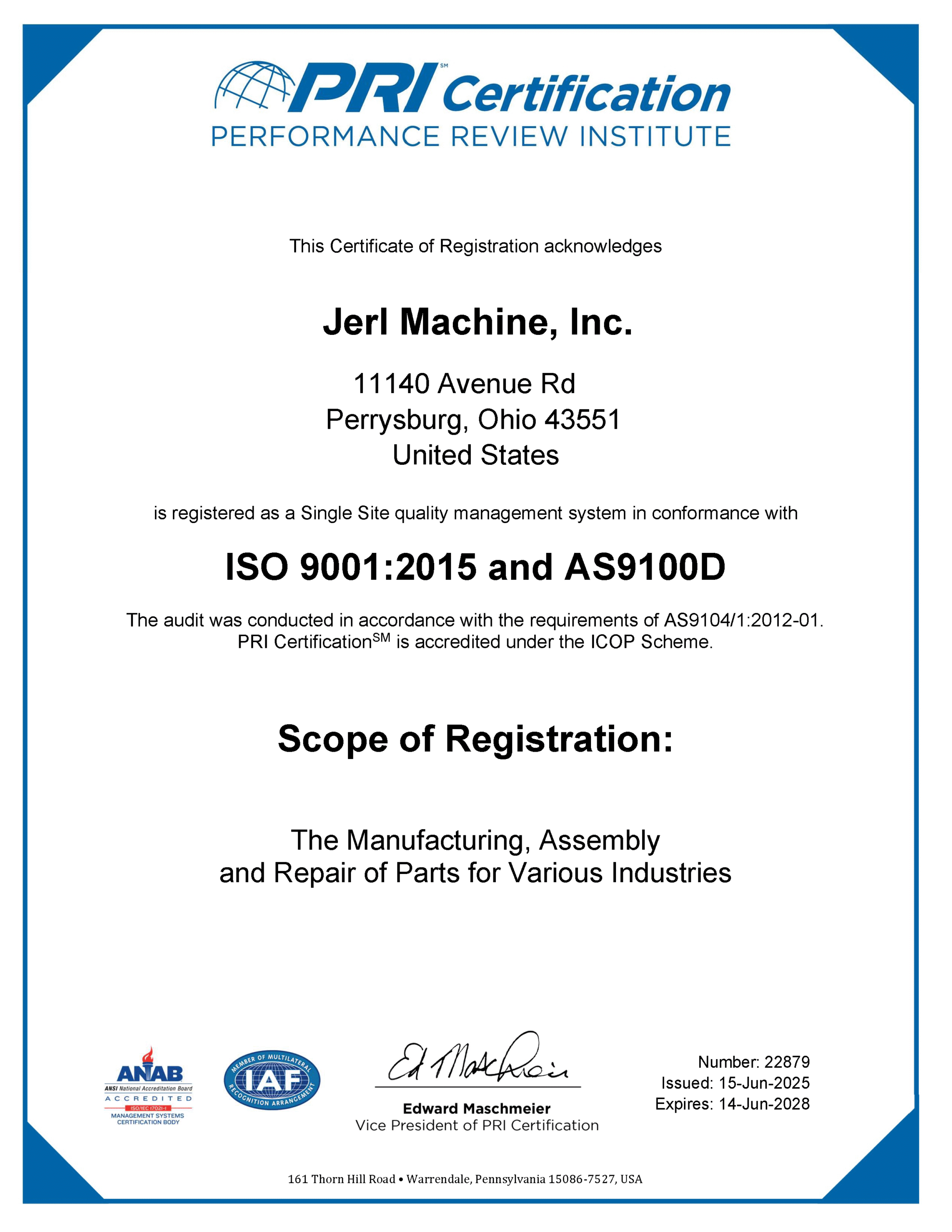

AS9100D / ISO 9001:2015

CWB Certified

MasterCAM

SolidWorks

G-ZERO Lathe

AutoCAD

*Capable of translating most software packages not listed above*

Take a tour of our shop
